Patrolman Clocks

How does PatrolMan work?

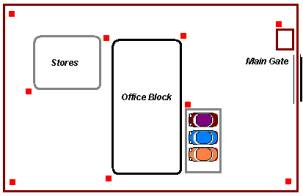

The PatrolMan baton is a modern electronic replacement for the traditional night watchman's clock. Unique numbered clock points are located at strategic locations around your premises to ensure you and your property of maximum protection. (See picture)  The Patrolman is issued with a stainless steel baton and during their patrol round the premises; the guard will swipe past these ID points with his PatrolMan baton.

Depending on the size of the property there are between 8 – 16 points on average

An LED (Light Emitting Diode) flashes when the tag has been read successfully.

At the end of the shift the guard hands in his PatrolMan baton in to be downloaded via a standard USB port to the PC. A number of different reports of various guard patrols can then be obtained. (See Software)

The PatrolMan baton stores the last 28000 transactions and each transaction stores the unique ID number of the Proximity Tag, as well as the Date, Time and Location of the tag point.

Proximity Points

These low-cost ID points all have their own unique alpha numerical number that is linked via software to each clock point. i.e. North west corner. Due to their stainless steel material used for the ID points, this makes them absolutely weather resistant and most suitable for use in harsh or even corrosive environments. They do not require any ongoing maintenance. The units can even be recessed behind concrete should you so wish.

The PatrolMan baton is rugged, manufactured from stainless steel and hermetically sealed, making it suitable for any environment, corrosive or otherwise.

It is shockproof and has been certified for use in hazardous areas “explosion protected Ex ib I T4”. Due to its high-capacity alkaline battery it has a lifetime of many years (3-7 years depending on usage) and is maintenance free. The batteries do need to be change every few years but other than that the unit is robust and reliable.

Simply mount the control point on any fixed object, one can get immediate reports on what has been checked, on which day and at what time.

The information can be downloaded directly into an industry-standard PC or via the Data Transporter Unit and we are available to give you a detailed demonstration of our products, which we feel you would find very interesting.

Products

TT520 - Patrolman

TT530C - Construction Portable Reader

The clock is about the length of two credit cards and thinner than the width of a credit card, it displays the date & time. It fits nicely into your hand and when you push the button to turn the reader on and hold it near the employees card, it will read the card number, the clock will 'Beep', a bright LED will nearly blind you, the card number is then displayed on the LCD screen.Switches off automatically. This card reader works for around 100 000 clockings before the battery must be replaced. This robust little clock will work in the rain which makes it splash proof. The electronics are completely sealed and top of the clock has a rubber cover which can be opened to connect the USB cable to your PC. Then you can download all the clockings.  Simple as that. The unit comes complete with a leather pouch (like a cell phone holder) that can be clipped to your supervisors belt and the clock is inserted and secured.  The supervisor takes the clock with him wherever he goes. Staff arriving late, need to go find the supervisor to clock in and report why they arrived late. Although not idiot proof, it will greatly reduce one employee clocking in/out for the other.

TT530P - Patrolman Portable Reader

Good security is needed in this country to protect property and your products. The cost of having this security person / Patrol Man is a sizeable investment for some, especially when this service is contracted out. This will probably not come as a surprise to you, but security guards sometimes fall asleep at night.

Proximity Bullets

Proximity Disc

Patrolman Software
